שולחן פתיחת אמצע רגליים מתפצלות

Rectangular table opening mid legs split

2 Table plate open on both sides together with a splitting (supporting) legs using the KOMBI-120/47 slide inside the table are the extansion (usually 4 extansion) and place them manually on the slides.

"Book" extansions can be used with an aluminum tube set. Opening the table is synchronized - one side opens and the other side opens automatically.

The brake mechanism is integral in the slide allowing partial opening of the table according to the amount of people.

KOMBI-120/47 slide
שולחן פתיחת אמצע רגליים מתפצלות
שולחן פתיחת אמצע רגליים מתפצלות
שולחן פתיחת אמצע רגליים מתפצלות
שולחן פתיחת אמצע רגליים מתפצלות

A Systematic combination: Innovative Technology, Efficiently implemented

  • The KOMBI slide is the world's most advanced dining tables mechanism (developed in POTTKER factory in Germany).

  • The combination (Kombi) between outer steel profile and inner aluminum profile provides high loading capacity and very quiet movement.

  • The slides are equipped with cable brake.

  • The brake is integral to the slide and produces double stability that was missing up to this day.

  • Attractive price for 4 extionsion table slide.



Note: We recommend using support legs for opening 1,500 mm or higher.

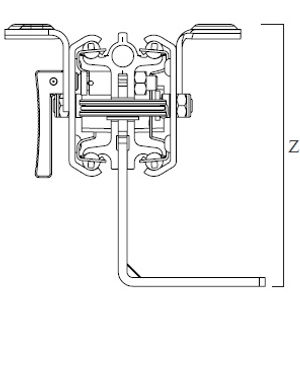

KOMBI 47/1200
height
opening
Length
KOMBI 47/1200
name
type
Z
Y
X
2055mm
93mm
1200mm
KOMBI-120/47
1902
